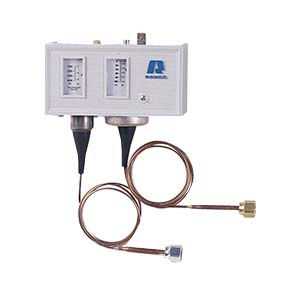

Ranco® O12 Pressure Control, Dual Function, 12 Inch Hg - 50 psi Low, 100 - 250 psi High, 5 - 35 psi Low Pressure, 50 psi High Pressure Differential, Closes On High/Opens On Low, SPST Switch, 24/240 V, 1/4 Inch SAE Flare Nut, 36 Inch Capillary Length, Screw Terminal, Universal Mount, NEMA 1, Non-Conductive
- Exclusive convertible reset for manual or automatic high pressure reset on some models
- Front located captive cover screw
- Large, easy to read scale plate
- Super cap capillary protection system
- Color coded flare nuts
- High pressure compressor protection with low pressure cycling or safety functions
- Auto reset
- Main switch off time: 40 - 110 sec
- Main switch on time: 1 - 20 sec
- Full load A: 24 FLA at 120/240 V
- Locked rotor A: 144 LRA at 120/240 V
- Pilot duty: 144 VA at 24 V; 720 VA at 120/240 V; 125 VA at 241 - 600 V
Application: Air Conditioning and R-12, R-22 and R-502 Refrigerants
