Paragon 8141-20

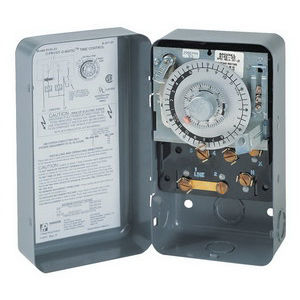

ParagonĀ® 8000 Mechanical Defrost Timer, 4 - 110 min, 208/240 V, 60 Hz, 40 A, 2 hp, 1 Pole, 1 NO, 2 NC, NEMA 1
SKU: 22752
Manufacturer part number: 8141-20
Manufacturer:

Robertshaw


Please Sign In to display product price.
ParagonĀ® 8000 Mechanical Defrost Timer, 208/240 V, 60 Hz, 40 A, 2 hp, 1 Pole, 1 NO, 2 NC, 4 - 110 min, On-Off Cycles: 6 Cycles/Day, NEMA 1, Heavy Duty Steel Enclosure, Gray
  • Positive slider bar switch design, assures positive electrical contact and wipes the contact surface of contaminates
  • Designed for defrost termination using an external temperature or pressure device
  • Safety back up - mechanical time driven defrost termination
  • Heavy duty synchronous design drive motor
  • Choice of three contact arrangements
  • Adjustable frequency of defrost initiation from 1 to 6 cycles per day with a minimum of 4 hr between successive operations
  • Time initiated pressure or temperature terminated

Standard/Approvals: CSA Certified, UL Listed

Application: Commercial Freezers, Electric Heat Defrosting and Refrigerators


Products specifications
Attribute nameAttribute value
Amperage Rating40 A
Contact Form1 NO, 2 NC
Enclosure TypeNEMA 1
FinishGray
ManufacturerRobertshaw
MaterialHeavy Duty Steel Enclosure
Number of Poles1
On/Off Cycles6 Cycles/Day
Power Rating2 hp
Series8000
Time Setting4 - 110 min
Voltage Rating208/240 V, 60 Hz
