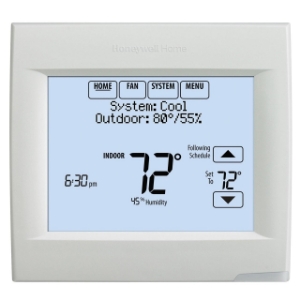

Resideo VisionPro 8000 with RedLink, 18-30Vac or 750mV, 7 Day Programmable, Up to 1 Heat/1 Cool Heat Pump or up to 1 Heat/1 Cool Conventional when used Standalone, Auto-On-Circulating-Follow Schedule Fan Switching, Auto or Manual Changeover, 40-90 Degree Heat Temperature Setting Range, 50-99 Degree Cool Temperature Setting Range, Battery or Hardwire, 4-5/8 Inch L x 4-15/16 Inch W x 1-1/8 Inch D, Includes: UN 3091 Lithium Metal Battery
Whole-Home Comfort, Simplified
The VisionPRO® 8000 RedLINK® programmable thermostat allows homeowners to manage their entire home comfort system through one easy-to-use interface. With RedLINK® wireless technology, the thermost at allows use with RedLINK® Accessories such as wireless indoor sensors, wireless outdoor sensor, and EIM, or the RedLINK® Internet Gateway to help balance comfort, safety, and energy efficiency.
- Thermostat works standalone or with the THM5421R1021 equipment interface module or with the TrueZONE® wireless adapter
- Smart schedule programs in seconds for any lifestyle
- Patented interview based programming and installer setup
- RedLINK™ wireless communication
- Increase profit per job by including RedLINK™ accessories that provide comfort and convenience. RedLINK™ accessories include the RedLINK™ internet gateway, portable comfort control (PCC), wireless outdoor sensor, wireless indoor sensor, wireless entry/exit remote, wireless vent and filter boost remote, TrueSTEAM™ humidifier with wireless adapter and TrueZONE® zoning panel with wireless adapter
- Light commercial language (occupied and unoccupied), schedule holidays and custom events, remote setback economizer and time of day. Remote setback requires the THM5421R1021 equipment interface module
- Plain language setup no manual needed
- Alerts and user interactions log - keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by a user error. Saves time in troubleshooting and points the technician in the right direction. The alert and user interaction logs are viewable on a computer after you download them from the thermostat to a microSD card
- Customizable service reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts
- MicroSD port for copying the installer setup customizable reminders, custom events and holidays to multiple thermostats
- MicroSD port for adding the dealer's contact information on the screen
- 1 assignable output on the TH8321 model to control humidification, dehumidification, ventilation or a stage of heating cooling
- 3 assignable outputs on the equipment interface module to control humidification, dehumidification, ventilation or a stage of heating cooling. The TH8110 and TH8320 models require the use of a wireless indoor sensor to control humidification and dehumidification
- 1 assignable input can be used with a wired outdoor, indoor or discharge sensor
- 4 assignable inputs on the equipment interface module can be used with wired outdoor, indoor or discharge sensors, occupancy sensor for remote setback and dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leak
- Extend wireless range of the equipment interface module by connecting a THM4000R1000 wireless adapter to the ABCD terminals
- Dual powered - battery or hardwired (C-wire)
- Multiple staging options to provide comfort or energy savings
Application: Conventional and Heat Pump systems
