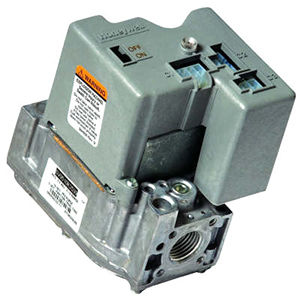

SmartValve® SV9520M Gas Control Valve, Standard Opening, 1/2 Inch, NPT, 1/2 psi, Direct Hot Surface Pilot Ignition, 20 - 200 cfh, Natural Gas, 24 V Coil, Upright Mount, -40 to 175 deg F, 4.1 Inch L x 3.2 Inch W x 4.9 Inch H, Includes: LP Conversion Kit
- Straight-through body pattern
- The control communicates directly with the ST9160 electronic fan timer (EFT) in typical forced warm air furnace applications
- It can directly interface with the appropriate power supplies and a system thermostat for additional appliance applications
- When controlled directly by a thermostat, the control does not provide a post purge function, as power to the control is removed when the thermostat call for heat ends
- This system is suitable for a wide range of fan-assisted combustion, gas fired appliances including furnaces, rooftop furnaces, boilers unit heaters, infrared heaters, water heaters and commercial cooking appliances
- 0 - 90 deg mounting in any direction from the upright position of the gas control knob, including vertically
- Flame failure response time: 2 sec at 5µA
- PrePurge: 15 sec
- Ignition Sequence: 7/12 sec
- Flame Sense: two rod
- Ignition trials to Lockout: 4 trials
Standard/Approvals: CSA Certified
