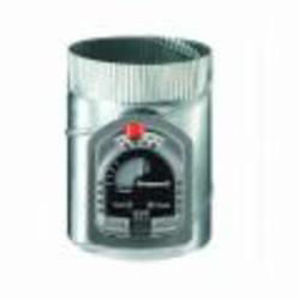

Honeywell ARD TrueZONE Zone Damper, Automatic, Single Blade, 10 Inch, Round, 24 V, 90 deg Rotation, 30 sec Power Open/10 sec Spring Return, Power Closed, Reversible, Spring Open Motor, 2-Wire, 40 - 140 deg F, Steel, Galvanized
The new TrueZONE Damper is a direct replacement for today's legacy dampers. With a more intuitive design, the TrueZONE damper allows for an easier installation with less troubleshooting. The TrueZONE damper also delivers an improved motor and gearing to insure long life and reliable operation even in high stress applications.
- Features galvanized steel with single-blade damper, which closes off tightly against gasket for minimal leakage
- Designated as power closed/spring return open damper for use with Honeywell Zoning Systems
- Can be field-converted when used as an independent zone or for fresh air intake
- Rated to operate up to 1 Inch wc
- Male (crimped) and female (uncrimped) ends to connect to any rigid or flexible round duct
- Fail-safe, normally open operation
- Simple, easy-to-wire, two-wire installation with a third wire option M4 for LED open only light
- Adjustable range stops that are simple to use and easier to understand
- Mechanical position indicator for the damper blade
- Push-in terminals
- Quieter operation through improved internal design that allows for a slower return
- With R8 insulation compatibility, the TrueZONE damper is designed to pass energy efficiency audits
- Side or top motor or actuator mounting
- M1 power, M6 common, M4 (optional)-LED indication terminals
Application: Controlling Circulating Air in Heating, Cooling and Venting System
