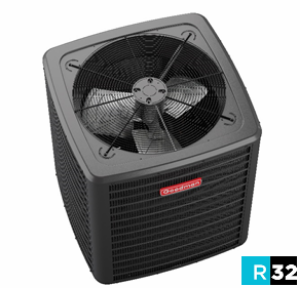

Goodman GLZS5BA4210 3.5 Ton, 15.2 SEER2, Up to 8.2 HSPF2 Heat Pump, Single Stage Scroll Compressor, 1/4HP PSC Condenser Fan Motor, ⅜" Liq. ⅞" Suct., 35A 208/230-1, 35-1/2"W x 35-1/2"D x 35-3/4"H, 72 dBA, 257 lbs.
Split Heat Pump
UP TO 16 SEER2 & 8.2 HSPF2
1½ to 5 Tons
GLZS5
High Efficiency R-32 Split System Heat Pump
SEER2 or Seasonal Energy Efficiency Rating is a measure designated by the U.S. Department of Energy and gives you a good idea of the performance you can expect from heat pumps. Up to 16 SEER2 cooling rating, the Goodman® brand GLZS5 Heat Pump can deliver an up to 8.2 HSPF2 (Heating Seasonal Performance Factor).
When you choose an energy efficient Goodman brand heat pump, year-round indoor comfort is combined with year-round savings compared to lower SEER-rated heat pumps.
Enhanced aluminum fin coil
Enhanced aluminum fin with coil-5mm diameter copper tubes in 1.5T-3.5 ton
Enhanced aluminum fin coil with 7mm diameter copper tubes 4.0-5.0 ton
Cabinet Features
Removable grille-style top design compliant with UL 60335-2-40
Heavy-gauge galvanized-steel cabinet
Baked-on powder-paint finish with 500-hour salt-spray approval
Steel louver coil guard with rust-resistant screws
Top and side maintenance access
Product Limited Warranty
The compressor and functional parts in your Goodman brand GLZS5B R-32 Heat Pump system are covered by a 10-Year Parts Limited Warranty*. For a full description of this warranty, please see your local Goodman dealer or click on the consumer brochure.
The owner of this heat pump system will appreciate the year-round energy savings and money-saving comfort that this product delivers year after year. Further, the unit features an attractive louvered metal coil guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.
Standard Features
• High-efficiency scroll compressor
• SmartShift® technology to ensure quiet reliable defrost
• Enhanced aluminum fin with coil-5mm diameter copper tubes in 1.5T-3.5 ton
• Enhanced aluminum fin coil with 7mm diameter copper tubes 4.0-5.0 ton
• Single-speed PSC condenser fan motor
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• High- and low-pressure switches
• Service valves with sweat connections and easy access to gauge ports
• Fully charged for 15’ of tubing length
• Ground lug connection
• Fully enclosed contactor
• Capacitor with extended life
• AHRI Certified; ETL Listed
Cabinet Features
• Removable grille style top design compliant with UL 60335-2-40
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• Single panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
