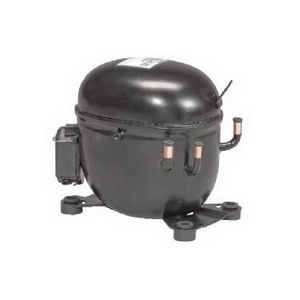

Copeland® Hermetic Compressor, Extended Medium Temperature, 9460 BtuH Cooling, 1590 W, R-404A, HFC, 5.95 EER, 208/230 V, 60 Hz, 1 Phase, 7.3 A, 1/2 Inch Stub Suction Line, 3/8 Inch Stub Discharge Line, Start Capacitor: 014-0061-29, Run Capacitor: 014-0064-12, POE Compressor Oil, 73 dBA, 8 Inch L x 4.8 Inch W x 10.4 Inch H Mount, 10.3 Inch L x 7.1 Inch W x 9.8 Inch H
- 3500 Rpm
- Internal overload
- Normal starting torque
- E03-097 relay
- Suction gas management, high flow valving, high efficiency motors
- Suction muffler, discharge system, shell/suspension design
- Robust gaskets and suspension, suction system arrangement
- Cost effective way to achieve energy savings vs. Modulation
- Ideal solution for sound sensitive applications
- Internal protectors provide better loss of charge protection
Standard/Approvals: UL SA-2337
Application: Commercial
