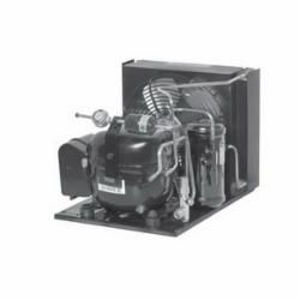

Copeland FJAL-B200-TFC-020

Copeland® FJAL Air Cooled Condensing Unit, 10500 BtuH Cooling, 208/230 V, 60 Hz, 3 Phase, 4.6 EER, 2 hp, 11.7 A Circuit
SKU: 4299
Manufacturer part number: FJAL-B200-TFC-020
Manufacturer:

Copeland


Please Sign In to display product price.

Copeland® FJAL Condensing Unit, Air Cooled, 10500 BtuH Cooling, 4.6 EER, 208/230 V, 60 Hz, 3 Phase, 2 hp, 3/8 Inch Slip Liquid Line, 7/8 Inch Slip Suction Line, 11.7 A, 15 A Fuse, 1070 cfm, R-404A, HFC, POE Oil, 90 deg F, 24.1 Inch L x 18.3 Inch W x 16.2 Inch H

  • Rated up to 110 deg F ambient
  • Modular components and compact design
  • High energy efficiency
  • Low sound and vibration
  • All units charged with POE oil and dry nitrogen

Products specifications
Attribute nameAttribute value
Circuit Amperage Rating11.7 A
Cooling Capacity10500 BtuH
Dimensions24.1 Inch L x 18.3 Inch W x 16.2 Inch H
EER Rating4.6
Flow Rate1070 cfm
Fuse Size15 A
Liquid Line Size3/8 Inch Slip
ManufacturerEmerson Electric
Oil TypePOE
Power Rating2 hp
Refrigerant TypeR-404A, HFC
SeriesFJAL
Suction Line Size7/8 Inch Slip
Temperature Rating90 deg F
TypeAir Cooled
Voltage Rating208/230 V, 60 Hz, 3 Phase
