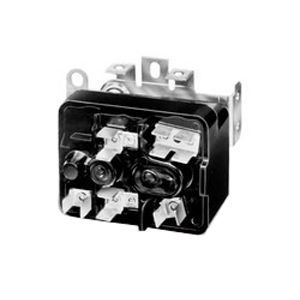

White-Rodgers 90-67

White-Rodgers™ 90-67 Continuous Duty Type 128000 Potential Relay, 300/328 VAC Pick-Up, 121 VAC Drop Out, 50/60 Hz
SKU: 63224
Manufacturer part number: 90-67
Manufacturer:

Emerson Electric


Please Sign In to display product price.

White-Rodgers™ Potential Relay, Continuous Duty, Type 128000, 300/328 VAC Pick-Up, 121 VAC Drop Out, 50/60 Hz, 420 VAC Coil, 12 mA, 5 VA Nominal, 10 VA Inrush Coil, 10000 Ohm Coil

  • Replaces thousands of OEM models
  • Guide to replace GE, RBM and other Steveco 90-#s included with each relay
  • Universal break-off bracket for mounting flexibility
  • -40 to 130 deg F
  • 500000 operation and 60 operations/min mechanical life





Standard/Approvals: CSA LR13360, UL SA1984



Products specifications
Attribute nameAttribute value
Coil Current12 mA, 5 VA Nominal, 10 VA Inrush
Coil Resistance10000 Ohm
Coil Voltage420 VAC
ManufacturerEmerson Electric
TypeContinuous Duty, Type 128000
Voltage Rating300/328 VAC Pick-Up, 121 VAC Drop Out, 50/60 Hz
