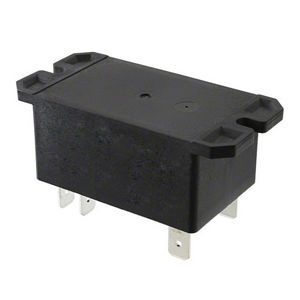

TE Connectivity T92P11A22-24

Name: TE Connectivity T92P11A22-24
Brand: TE Connectivity
SKU: 73128
Price: 26.71 USD
Availability: InStock

TE Connectivity T92 General Purpose Power Relay, 277 VAC, 30 A, 24 VAC 30 A 37 Ohm Non-Latching Coil, DPDT, 8 Pins

SKU: 73128

Manufacturer part number: T92P11A22-24

Manufacturer:

TE Connectivity

Please Sign In to display product price.

Out of stock. 2-3 weeks Leadtime.

TE Connectivity T92 Power Relay, General Purpose, 277 VAC, 30 A, Non-Latching Coil, 24 VAC Coil, 30 A Coil, 37 Ohm Coil, Silver Cadmium Oxide Contact, DPDT, 8 Pins, Bracket/Panel Mount, Quick Connect, Solder Terminal, 2.051 Inch H x 1.359 Inch W x 1.039 Inch D

Monostable coil magnetic system

Standard/Approvals: CSA Certified, UL Listed

Products specifications

Attribute name	Attribute value
Amperage Rating	3.0 A
Coil Current	30 A
Coil Resistance	37 Ohm
Coil Type	Non-Latching
Coil Voltage	24 VAC
Contact Configuration	DPDT
Contact Material	Silver Cadmium Oxide
Dimensions	2.051 Inch H x 1.359 Inch W x 1.039 Inch D
Manufacturer	TE Connectivity
Mounting Type	Bracket/Panel
Number of Pins	8
Series	T92
Terminal Type	Quick Connect, Solder
Type	General Purpose
Voltage Rating	277 VAC
