Sorry - this product is no longer available

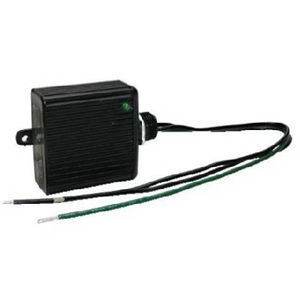

Supco SCM150

Supco® SCM Surge Arrestor, 150000 A, 120/240 V, 1 Phase, 0 - 400 Hz, 100000 A Surge, 120 - 240 V Clamping
SKU: 6263
Manufacturer part number: SCM150
Manufacturer:

Supco


Please Sign In to display product price.

Supco® SCM Surge Arrestor, 120/240 V, 1 Phase, 150000 A, 0 - 400 Hz, 100000 A Peak Surge, 120 - 240 V Clamping, 10000 A Nominal Discharge, Modes of Protection: L-G, L-L, < 5 ns Response, High Impact Plastic Insulation, NEMA 4X, 1/2 Inch Knockout Mount, Hardwired Terminal, 2-7/8 Inch L x 3-3/4 Inch W x 2 Inch H, Thermoplastic, Includes: Mounting Hardware

  • Easy installation at disconnect or panel
  • Weatherproof housing
  • Green LED to indicate surge protection is present
  • -40 to140 deg F operating temperature





Standard/Approvals: UL/cUL Listed, ANSI/ IEEE C62.11

Application: Air Conditioning Compressors, Electro-Mechanical Devices, Heat Pump Compressors, Motors, Pumps and Refrigeration Compressors



Products specifications
Attribute nameAttribute value
Amperage Rating150000 A
Clamping Voltage120 - 240 V
Dimensions2-7/8 Inch L x 3-3/4 Inch W x 2 Inch H
Enclosure TypeNEMA 4X
Frequency Rating0 - 400 Hz
ManufacturerSupco
MaterialThermoplastic
Modes of ProtectionL-G, L-L
Mounting Type1/2 Inch Knockout
Nominal Discharge Current10000 A
Peak Surge Current100000 A
Response Time< 5 ns
SeriesSCM
Terminal TypeHardwired
Voltage Rating120/240 V, 1 Phase
