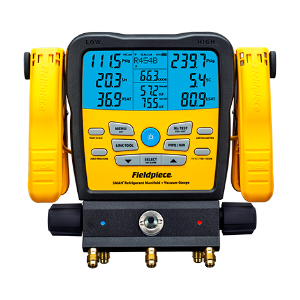

SM382V Fieldpiece SMAN Refrigerant Manifold 3-port, Wireless

Fieldpiece SM382V SMAN Refrigerant Manifold 3-port, Wireless, A2L Ready
SKU: FLD-SM382V
Manufacturer part number: SM382V

Please Sign In to display product price.

SM382V Fieldpiece SMAN Wireless Refrigerant Manifold (3-Port)
Your HVACR Command Central.


Supports over 70 refrigerants
A2L Compatible
Features an integral vacuum gauge
Logs hours of data
Runs a temperature compensated nitrogen pressure test
Displays in 12 languages
Serves as a central data hub for Job Link® wireless tools and connects to the Job Link® system app
Dust and water resistant (IP55)

Designed for Performance
Knowledge, power and experience are packed into the SMAN® Refrigerant 2-valve Manifolds. Years of feedback from A/C and refrigeration specialists is combined with Fieldpiece’s laser focus on continuous improvement to bring you the toughest, most advanced digital refrigerant manifold on the market.
With wireless capabilities, data logging, and tightness testing, the SM382V is built so you can do your job easier, faster and better.

Simply Strong
The SM382V 2-valve Manifold is simply strong. The heavy-duty casing, reinforced hook, IP55 dust and water resistance, impact resistant screen, protected thermocouple jacks, and hermetically sealed sight glass, all ensure the SMANs are ready to go to work.

Packed with Knowledge
The SM382V is designed to work the way you do with advanced features to streamline your job and provide the answers you need.

Measures
• Line pressures, pipe temperatures, dry bulb temperature and system vacuum

Calculates
• Superheat, subcooling, vapor saturation, liquid saturation and delta T
• Live target delta T and target evaporator exit temperature with optional Job Link wireless tools
• Temperature-compensated pressure differential for nitrogen pressure testing

Data Logs
• Stores up to 9 jobs internally
• Logs up to 168 continuous hours

Is Customizable
• Select the measurements to display
• Select wireless ON/OFF
• Set high and low vacuum alarms

Part of the Job Link® System of Wireless Tools
Add Job Link® System wireless tools to your arsenal and get live readings directly on the SMAN® manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC), and SR47 Refrigerant Scale. Place pipe clamps in the perfect location. View live air measurements and calculations while making adjustments. Monitor and record refrigerant weight for precise recovery and charging documentation.

Increase Professionalism with Job Link® System App
Streamline and simplify your call even further with the Job Link System App. See your measurements up to 1000’ away on your mobile device. Document your work and provide professional reports, including refrigerant recovery and charge weight, by simply connecting to the Job Link System app.

Specifications

Ports: (3) 1/4″ for suction line, liquid line and refrigerant recovery/charging
Display: LCD (5 inches diagonal)
Backlight: Blue (adjustable duration)
Low Battery Indication: displayed when the battery voltage drops below the operating level
Auto Power Off: 30 minutes of inactivity (adjustable)
Battery Type: (6) AA alkaline
Battery Life: 405 hours (w/ backlight and wireless OFF)
Radio Frequency: 2.4 GHz
Wireless Range: 1000 feet (305 meters) line of sight, distance decreases with obstructions
Data Port: USB-C (for extracting data logs or updating firmware)
Maximum Manifold Pressure: 870 Psig (6000 kPa)
Vacuum: 50 to 9999 microns
Temperature Measurement Range: -50° to 257° F (-46° to 125° C)
Operating Environment: -10°C to 50°C (14°F to 122°F) at <75% RH
Storage Environment: -20°C to 60°C (-4°F to 140°F) at <80% RH (with battery removed)
Dimensions: 8.75” W x 8.5” H x 3.75”D
Weight: 3.9 lbs (1.8 kg)
Water Resistant: Tested to IP55

Includes:
• SM382V 3-Port Manifold
• (2) TC24 Wired Type-K Pipe Clamp Thermocouple
• (1) ATA1 Type-K Bead Thermocouple with Clip
• (1) ANC82 Easy-Open, Padded Case
• (6) AA Alkaline Batteries
• (1) Operator’s Manual



Products specifications
Attribute nameAttribute value
ManufacturerFieldpiece Instruments
Refrigerant Type- HFCs (e.g., R32, R134a, R410A, R404A, R407A, R507) - HFOs (e.g., R1234yf) - HCFCs (e.g., R22) - CFCs (e.g., R12)
Compatible WithSuitable for use with Class A1, A2L, A2, and A3 refrigerants, A2L Compatible including R32 and R454b
DisplayBacklit LCD
