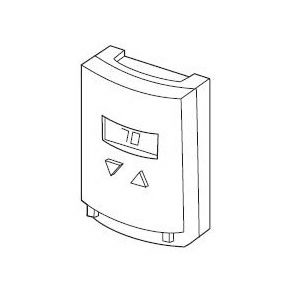

Erie™ Non-Programmable Thermostat, 50 - 86 deg F, 2 deg F Differential, Push Button Switch, System Switching: Heat-Off, 24 V, Vertical Mount, NEMA Type 1, 4 Inch H x 2-1/2 Inch W Thermostat, 4-3/4 Inch H x 4-1/4 Inch W Thermostat Base and Adaptor Plate
- LCD window display, deg F standard, deg C configurable
- Short cycle protection
- Mechanical low limit protection (FP model)
- Jumper selectable 5 min time delay for heating and cooling application
- Base adaptor plate standard
- 20 to 32 VAC
- 75 mA to 1.2 A (power stealing thermostat)
- Set point backup Energizer 357 or similar (battery included)
- 1.2 A inductive load max
- Rigid vinyl, Off-white
- 40 to 125 deg F operating
