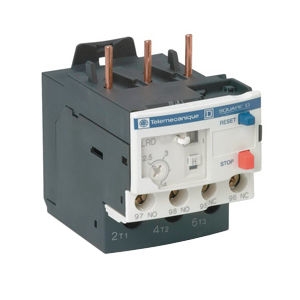

Barber Colman LRD22

Barber Colman LRD22 Electric Overload Relay, 690 VAC, 16 - 24 A, Direct Contactor Mount, Screw Clamp Terminal
SKU: 80174
Manufacturer part number: LRD22
Manufacturer:

Schneider Electric


Please Sign In to display product price.
Barber Colman Overload Relay, Electric, 690 VAC, 16 - 24 A, Direct Contactor Mount, Screw Clamp Terminal, 3.62 Inch H x 1.77 Inch W x 2.75 Inch D
  • Standard tripping time between 6 and 20 sec. For 7.2 × the setting current
  • Installs directly onto LC1D contactors from the LC1D09 to the LC1D32 models
  • Automatic or manual reset
  • 1 phase sensitivity - phase loss protection
  • Class 10 trip characteristic
  • Base mounted auxiliary contact
  • Isolated N. C. Trip contact and N. O. Alarm contacts
  • Tamper resistant window for FLA settings
  • Test trip button

Standard/Approvals: CSA Certified, UL Listed


Products specifications
Attribute nameAttribute value
Amperage Rating16 - 24 A
Dimensions3.62 Inch H x 1.77 Inch W x 2.75 Inch D
ManufacturerSchneider Electric
Mounting TypeDirect Contactor
Terminal TypeScrew Clamp
TypeElectric
Voltage Rating690 VAC
