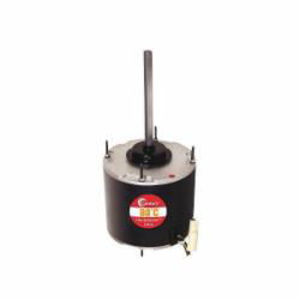

Century Condenser Fan Motor, Continuous Duty, Permanent Split Capacitor, 1/3 - 1/6 hp, 208 - 230 V, 1.9 A, 60 Hz, 3 Phase, 48Y Frame, 1075 Rpm, 1 Speed, Reversible, Service Factor: 1, Capacitor: 7.5 uF at 370 V, 5-5/8 Inch Body Dia, 10-5/8 Inch Overall Length, 1/2 Inch Dia x 6-1/2 Inch L Shaft, Ball Bearing, Stud Mount, Mounting Position: All Angle, 65 Percent Efficiency, 80 deg C, Class F Insulation, Totally Enclosed Air Over
- Automatic thermal protection
- Double sealed ball bearings with high temperature synthetic grease
- Energy efficient
- Water-resistant reversing plug
- 48 Inch color coded high temperature leads for easy identification and installation
- 4-1/8 Inch length without shaft
- For use with head pressure/speed controls
Standard/Approvals: UL Listed, CSA Certified
