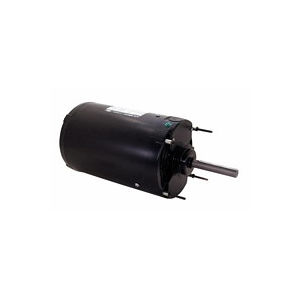

Century® Condenser Fan Motor, 1-1/2 hp, 200 - 230/460 V, 5.4/2.7 A, 60 Hz, 3 Phase, 56 Frame, 1140 Rpm, 1 Speed, Reversible, Service Factor: 1, 6-1/2 Inch Body Dia, 14.84 Inch Overall Length, 5/8 Inch Dia x 4-1/4 Inch L Shaft, Ball Bearing, Belly Band Mount, Mounting Position: Vertical, 60 deg C, Class B Insulation, Totally Enclosed Air Over
- Automatic overload protector
- Class B moisture resistant insulation
- 5/8 Inch diameter shaft with both keyway and flat
Standard/Approvals: UL Listed, CSA Certified
Application: HVAC Systems
