Century FY3106

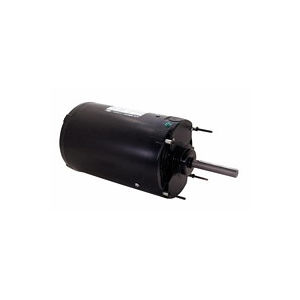

Century® FY3106 Condenser Fan Motor, 1 hp, 200 - 230/460 V, 5.7/2.9 A, 1140 Rpm, Frame 56, 60 Hz, 3 Phase, 1 Speed
SKU: 54446
Manufacturer part number: FY3106
Manufacturer:

Regal-Beloit


Please Sign In to display product price.
Century® Condenser Fan Motor, 1 hp, 200 - 230/460 V, 5.7/2.9 A, 60 Hz, 3 Phase, 56 Frame, 1140 Rpm, 1 Speed, Reversible, Service Factor: 1, 6-1/2 Inch Body Dia, 15.42 Inch Overall Length, 5/8 Inch Dia x 4-1/16 Inch L Shaft, Ball Bearing, Belly Band Mount, Mounting Position: Vertical, 60 deg C, Class B Insulation, Totally Enclosed Air Over

  • Automatic overload protector
  • Class B moisture resistant insulation
  • 5/8 Inch diameter shaft with both keyway and flat

Standard/Approvals: UL Listed, CSA Certified

Application: HVAC Systems

Products specifications
Attribute nameAttribute value
Amperage Rating5.7/2.9 A
Bearing TypeBall
Body Diameter6-1/2 Inch
Enclosure TypeTotally Enclosed Air-Over
Frame56
Frequency Rating60 Hz, 3 Phase
Insulation TypeClass B
ManufacturerRegal-Beloit
Mounting PositionVertical
Mounting TypeBelly Band
Number of Speeds1
Overall Length15.42 Inch
Power Rating1 hp
Rotation TypeReversible
Service Factor1
Shaft Size5/8 Inch Dia x 4-1/16 Inch L
Speed1140 Rpm
Temperature Rating60 deg C
Voltage Rating200 - 230/460 V
