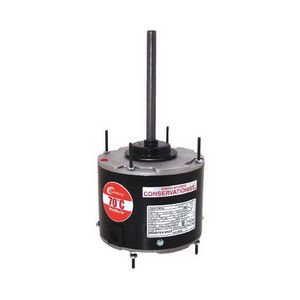

Century FE1076SF

Century® FE1076SF Permanent Split Capacitor Condenser Fan Motor, 3/4 hp, 208 - 230 V, 4.6/5.1 A, 1075 Rpm, Frame 48
SKU: 73187
Manufacturer part number: FE1076SF
Manufacturer:

Regal-Beloit


Please Sign In to display product price.
Century® Condenser Fan Motor, Permanent Split Capacitor, 3/4 hp, 208 - 230 V, 4.6/5.1 A, 60 Hz, 1 Phase, 48 Frame, 1075 Rpm, 1 Speed, Reversible, Service Factor: 1, Capacitor: 15 uF at 370 V, 5-5/8 Inch Body Dia, 11-7/8 Inch Overall Length, 1/2 Inch Dia x 6 Inch L Shaft, Ball Bearing, Thru-Bolt/Stud Mount, Mounting Position: All Angle, 65% Efficiency, 70 deg C, Class F Insulation, Totally Enclosed Air Over

  • PSC motors are insulated and designed for troublefree operation at full rated load at high temperature
  • Rotor cores have corrosion-resistant coating to ensure long motor life
  • Easy-to-remove drain plugs in each end shield
  • Shell has predrilled holes for easy rheem mounting
  • 36 Inch color-coded, high-temp leads

Standard/Approvals: UL Listed, CSA Certified

Application: Outdoor Air Conditioning, Refrigeration Condensing Units and Heat Pumps

Products specifications
Attribute nameAttribute value
Amperage Rating4.6/5.1 A
Bearing TypeBall
Body Diameter5-5/8 Inch
Capacitor15 uF at 370 V
Efficiency65%
Enclosure TypeTotally Enclosed Air-Over
Frame48
Frequency Rating60 Hz, 1 Phase
Insulation TypeClass F
ManufacturerRegal-Beloit
Mounting PositionAll Angle
Mounting TypeThru-Bolt/Stud
Number of Speeds1
Overall Length11-7/8 Inch
Power Rating3/4 hp
Rotation TypeReversible
Service Factor1
Shaft Size1/2 Inch Dia x 6 Inch L
Speed1075 Rpm
Temperature Rating70 deg C
TypePermanent Split Capacitor
Voltage Rating208-230 V
