Fasco D997

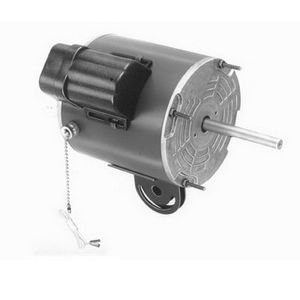

Fasco® D997 Permanent Split Capacitor Pedestal Fan Motor, 1/2 - 1/4 hp, 115 V, 7.1 - 4 A, 1100 Rpm, Frame 5.6 Inch
SKU: 69738
Manufacturer part number: D997
Manufacturer:

Regal-Beloit


Please Sign In to display product price.

Fasco® Pedestal Fan Motor, Permanent Split Capacitor, 1/2 - 1/4 hp, 115 V, 7.1 - 4 A, 60 Hz, 1 Phase, 5.6 Inch Frame, 1100 Rpm, 2 Speed, Reversible, Capacitor: 12.5 uF at 370 V, 5.6 Inch Body Dia, 1/2 Inch Dia x 3 Inch L Shaft, Sleeve Bearing, Totally Enclosed, Includes: Pull Chain Switch

  • 10 ft cord set and extended tie rods for fan guard
  • 5-6/32 Inch bolt circle
  • Automatic thermal protection
  • 7-1/3 Inch length less shaft





Standard/Approvals: UL Listed, CSA Certified



Products specifications
Attribute nameAttribute value
Amperage Rating7.1 - 4 A
Bearing TypeSleeve
Body Diameter5.6 Inch
Capacitor12.5 uF at 370 V
Enclosure TypeTotally Enclosed
Frame5.6 Inch
Frequency Rating60 Hz, 1 Phase
ManufacturerRegal-Beloit
Number of Speeds2
Power Rating1/2 - 1/4 hp
Rotation TypeReversible
Shaft Size1/2 Inch Dia x 3 Inch L
Speed1100 Rpm
TypePermanent Split Capacitor
Voltage Rating115 V
