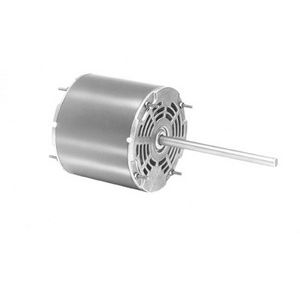

Fasco® D900 Condenser Fan Motor, Permanent Split Capacitor, 3/4 - 1/3 hp, 208/230 V, 5 - 2.2 A, 60 Hz, 1 Phase, 48 Frame, 1075 Rpm, 2 Speed, Reversible, Service Factor: 1, Capacitor: 15 uF at 370 V, 5.6 Inch Body Diameter, 3/8 Inch Dia x 4-1/2 Inch L Shaft, Ball Bearing, Belly Band/Stud Mount, 65% Efficiency, 60 deg C, Class B Insulation, Open, Includes: Shaft Water Slinger
- Automatic overload
- All-angle mount bearings
- Has 4 drilled and tapped holes in shell
- Open vented on opposite shaft end
- Includes shaft water slinge
- Closed end shield shaft end
- Shaft length is measured from motor face
- 5-1/4 Inch length less shaft
Standard/Approvals: CSA Certified, UL/ULc Listed
Application: Commercial and Residential
