Fasco D817

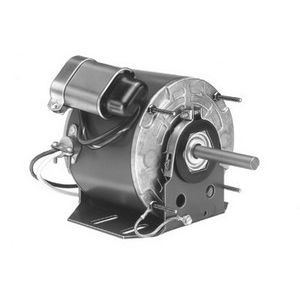

Fasco® D817 Blower Motor, 1/2 hp, 115 V, 5.5 A, 1140 Rpm, Frame 48, 60 Hz, 1 Phase, CW
SKU: 47640
Manufacturer part number: D817
Manufacturer:

Regal-Beloit


Please Sign In to display product price.
Fasco® Blower Motor, 1/2 hp, 115 V, 5.5 A, 60 Hz, 1 Phase, 48 Frame, 1140 Rpm, Permanent Split Capacitor Motor, 1 Speed, CW, Service Factor: 1, Capacitor: 5 uF at 370 V, 5.6 Inch Body Dia, 4-1/2 Inch L, 1/2 Inch Dia x 6 Inch L Shaft, Ball Bearing, All Angle Mount, Totally Enclosed Air Over, Includes: Capacitor: and Base
  • Automatic thermal protection

Standard/Approvals: UL Listed, CSA Certified

Application: Unit Heaters


Products specifications
Attribute nameAttribute value
Amperage Rating5.5 A
Bearing TypeBall
Body Diameter5.6 Inch
Capacitor5 uF at 370 V
Dimensions4-1/2 Inch L
Enclosure TypeTotally Enclosed Air-Over
Frame48
Frequency Rating60 Hz, 1 Phase
ManufacturerRegal-Beloit
Motor TypePermanent Split Capacitor
Mounting TypeAll Angle
Number of Speeds1
Power Rating12 hp
Rotation TypeCW
Service Factor1
Shaft Size1/2 Inch Dia x 6 Inch L
Speed1140 Rpm
Voltage Rating115 V
