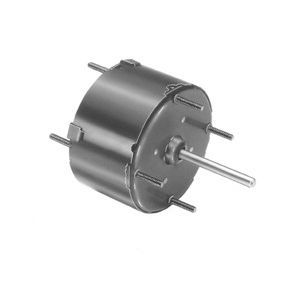

Fasco® General Purpose Motor, Shaded Pole, 1/50 hp, 115 V, 8.8 - 4.4 A, 60 Hz, 1 Phase, 3.3 Inch Frame, 1500 Rpm, 1 Speed, CW, Service Factor: 1, 3.3 Inch Body Dia, 1/4 Inch Dia x 2-3/8 Inch L Shaft, Sleeve Bearing, Stud Mount, Mounting Position: All Angle, 35% Efficiency, 40 deg C, Class B Insulation, Open Drip Proof
- Automatic thermal protection
- 2-3/16 Inch length less shaft
- 2-27/32 Inch bolt circle
- Rotation is determined by viewing the shaft end
- Used with 7 - 10 Inch hubless fan blades
Standard/Approvals: UL Listed, CSA Certified
Application: Air Conditioning Units, Commercial Refrigeration Condensers, Direct Drive and Belted Fans, Exhaust Fans, Unit Heaters and ventilators
