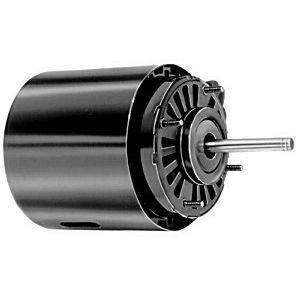

Fasco® Refrigeration Fan Motor, Shaded Pole, 1/20 hp, 208/230 V, 1.1 A, 60 Hz, 1 Phase, 3.3 Inch Frame, 1550 Rpm, 1 Speed, CCW, Service Factor: 1, 3.3 Inch Body Diameter, 4-1/4 Inch Overall Length, 5/16 Inch Dia x 2-1/2 Inch L Shaft, Sleeve Bearing, Stud Mount, Mounting Position: All Angle, 35% Efficiency, 40 deg C, Class B Insulation, Open Ventilated Air Over, Includes: 1/2 Inch Studs
- Thermally protected
- Rotation is determined by viewing the shaft end
- Shaft length is measured from motor face
- Automatic overload
- 2.85 Inch bolt circle
Standard/Approvals: CSA Certified, UL Listed
Application: Evaporator Coil Fans, Portable Heaters and Therapeutic Appliances
