Fasco D291

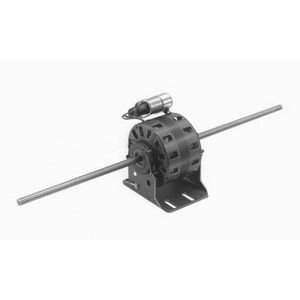

Fasco® D291 Double Shaft Permanent Split Capacitor Fan Coil A/C and Heating Unit Motor, 1/10 - 1/15 - 1/25 - 1/40 hp
SKU: 10173
Manufacturer part number: D291
Manufacturer:

Regal-Beloit


Please Sign In to display product price.
Fasco® Fan Coil A/C and Heating Unit Motor, Double Shaft, Permanent Split Capacitor, 1/10 - 1/15 - 1/25 - 1/40 hp, 115 V, 2.2 - 1.4 - 1 - 0.7 A, 60 Hz, 1 Phase, 42 Frame, 1050 Rpm, 4 Speed, Service Factor: 1, 5 Inch Body Diameter, 3-1/4 Inch Overall Length, 1/2 Inch Dia x 10-3/4 Inch L Shaft, Sleeve Bearing, Resilient Base Mount, 65% Efficiency, 40 deg C, Class B Insulation, Open Ventilated Air Over

  • Thermally protected
  • Rotation is determined by viewing the shaft end
  • Shaft length is measured from motor face
  • Automatic overload
  • 4-5/8 Inch bolt circle

Standard/Approvals: CSA Certified, UL Listed

Application: Commercial and Industrial Unit Heaters

Products specifications
Attribute nameAttribute value
Amperage Rating2.2 - 1.4 - 1 - 0.7 A
Bearing TypeSleeve
Body Diameter5 Inch
Efficiency65%
Enclosure TypeOpen Ventilated Air Over
Frame42
Frequency Rating60 Hz, 1 Phase
Insulation TypeClass B
ManufacturerRegal-Beloit
Mounting TypeResilient Base
Number of Speeds4
Overall Length3-1/4 Inch
Power Rating1/10 - 1/15 - 1/25 - 1/40 hp
Service Factor1
Shaft Size1/2 Inch Dia x 10-3/4 Inch L
Speed1050 Rpm
Temperature Rating40 deg C
TypeDouble Shaft, Permanent Split Capacitor
Voltage Rating115 V
