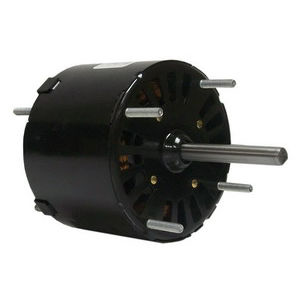

Fasco® General Purpose Motor, Shaded Pole, 1/30 - 1/40 hp, 115 V, 1.3 - 1 A, 60 Hz, 1 Phase, 3.3 Inch Frame, 1500 Rpm, 2 Speed, CCWSE Service Factor: 1, 3.3 Inch Body Dia, 5/16 Inch Dia x 2-1/4 Inch L Shaft, Sleeve Bearing, Stud Mount, 40 deg C, Class B Insulation, Open Ventilated Air Over
- 2-5/8 Inch length less shaft
- 2-27/32 Inch bolt circle
- Automatic thermal protection
- Rotation is determined by viewing the shaft end
- Automatic overload
Standard/Approvals: UL Listed, CSA Certified
Application: HVAC Systems
