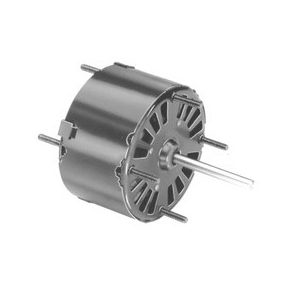

Fasco® D100 General Purpose Motor, Shaded Pole, 1/40 hp, 115 V, 1.1 A, 60 Hz, 1 Phase, 3.3 Inch Frame, 1500 Rpm, 1 Speed, CW, Service Factor: 1, 3.3 Inch Body Diameter, 5/16 Inch Dia x 2-1/4 Inch L Shaft, Sleeve Bearing, Stud Mount, 35% Efficiency, 40 deg C, Class B Insulation, Open
- Automatic overload
- Rotation is determined by viewing the shaft end
- 4 studs on each end
- Has hubs for end rings
- Impedance protected
- 2-1/2 Inch length less shaft
Standard/Approvals: CSA Certified, UL/ULc Listed
Application: Evaporator Coil Fans, Portable Heaters, Therapeutic Appliances and Variables Speed
