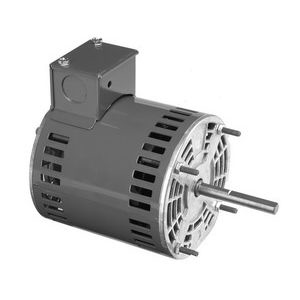

Fasco® D1000 General Purpose Motor, Shaded Pole, 1/15 hp, 115 V, 2.1 A, 60 Hz, 1 Phase, 4.3 Inch Frame, 1500 Rpm, 1 Speed, CW, Service Factor: 1, 4.4 Inch Body Diameter, 3/8 Inch Dia x 2-1/2 Inch L Shaft, Ball Bearing, Stud Mount, 35% Efficiency, 40 deg C, Class A Insulation, Open
- Automatic overload
- Rotation is determined by viewing the shaft end
- External oil retainer to accommodate resiliant rings and cradle base, drilled and tapped holes in case for mounting in Coleman® applications
- Self-cooled for mechanical duty
- Thermal protected
- Flat shaft
- Four studs on shaft ends
- 4-3/4 Inch length less shaft
Standard/Approvals: CSA Certified, UL/ULc Listed
Application: Compressors, Room Air Conditioners, Heating Ventilating Equipment and Pumps
