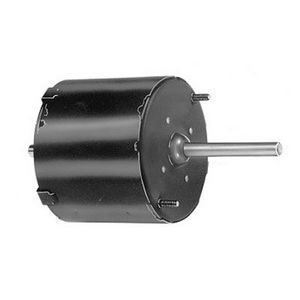

Fasco D1139

Fasco® D1139 Shaded Pole General Purpose Motor, 1/50 - 1/80 - 1/125 hp, 115 V, 0.88 A, 1500 Rpm, 3.3 Inch Frame
SKU: 252
Manufacturer part number: D1139
Manufacturer:

Regal-Beloit


Please Sign In to display product price.
Fasco® General Purpose Motor, Shaded Pole, 1/50 - 1/80 - 1/125 hp, 115 V, 0.88 A, 60 Hz, 1 Phase, 3.3 Inch Frame, 1500 Rpm, 3 Speed, CWSE Service Factor: 1, 3.3 Inch Body Dia, 5/16 Inch Dia x 2-1/2 Inch L, 5/16 Inch Dia x 1-1/8 Inch L Shaft, Sleeve Bearing, Stud Mount, Open Ventilated

  • 2-13/16 Inch length less shaft
  • 2-27/32 Inch bolt circle
  • Automatic thermal protection
  • Rotation is determined by viewing the shaft end
  • Automatic overload

Standard/Approvals: UL Listed, CSA Certified

Products specifications
Attribute nameAttribute value
Amperage Rating0.88 A
Bearing TypeSleeve
Body Diameter3.3 Inch
Enclosure TypeOpen Ventilated
Frame3.3 Inch
Frequency Rating60 Hz, 1 Phase
ManufacturerRegal-Beloit
Mounting TypeStud
Number of Speeds3
Power Rating1/50 - 1/80 - 1/125 hp
Rotation TypeCWSE
Service Factor1
Shaft Size5/16 Inch Dia x 2-1/2 Inch L, 5/16 Inch Dia x 1-1/8 Inch L
Speed1500 Rpm
TypeShaded Pole
Voltage Rating115 V
