Century C907

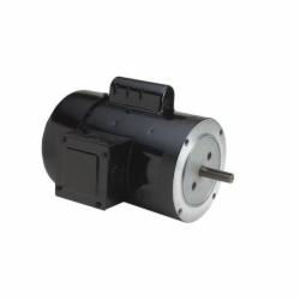

Century C-Face Continuous Duty Capacitor Start Electric Motor, 1/2 hp, 115/208 - 230 V, 7.2/3.5 - 3.6 A, 1725 Rpm
SKU: 83372
Manufacturer part number: C907
Manufacturer:

Regal-Beloit


Please Sign In to display product price.

Century Electric Motor, C-Face, Continuous Duty, Capacitor Start, 1/2 hp, 115/208 - 230 V, 7.2/3.5 - 3.6 A, 60 Hz, 1 Phase, 56C Frame, 1725 Rpm, 1 Speed, Reversible, Service Factor: 1.15, 6-1/2 Inch Body Dia, 12.2 Inch Overall Length, 5/8 Inch Dia x 1-7/8 Inch L Shaft, Ball Bearing, Round Frame Base Mount, 40 deg C, Class B Insulation, Totally Enclosed Fan Cooled

  • Keyed shaft
  • Gasketed conduit box





Standard/Approvals: UL Listed, CSA Certified

Application: Speed Reducers, Industrial and Commercial Pumps

Products specifications
Attribute nameAttribute value
Amperage Rating7.2/3.5 - 3.6 A
Bearing TypeBall
Body Diameter6-1/2 Inch
Enclosure TypeTotally Enclosed Fan Cooled
Frame56C
Frequency Rating60 Hz, 1 Phase
Insulation TypeClass B
ManufacturerRegal-Beloit
Mounting TypeRound Frame Base
Number of Speeds1
Overall Length12.2 Inch
Power Rating12 hp
Rotation TypeReversible
Service Factor1.15
Shaft Size5/8 Inch Dia x 1-7/8 Inch L
Speed1725 Rpm
Temperature Rating40 deg C
TypeC-Face, Continuous Duty, Capacitor Start
Voltage Rating115/208 - 230 V
