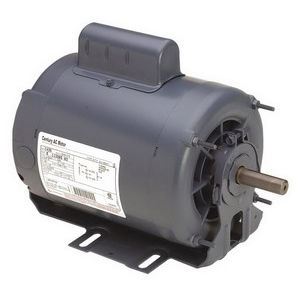

Century C533

Century® C533 3/4 hp, Continuous Duty Belt Drive Blower Motor, 115 V, 10/4 A, 1725/1140 Rpm, Frame 56, 2-Speed
SKU: 80020
Manufacturer part number: C533
Manufacturer:

Regal-Beloit


Please Sign In to display product price.
Century® 3/4 hp, Belt Drive Blower Motor, Continuous Duty, 115 V, 10/4 A, 60 Hz, 1 Phase, 56 Frame, 1725/1140 Rpm, 2 Speed, Reversible, Service Factor: 1.25, 6-1/2 Inch Body Dia, 12-3/16 Inch Overall Length, 5/8 Inch Dia x 1-7/8 Inch L Shaft, Ball Bearing, Cradle/Stud Mount, 40 deg C, Class B Insulation, Open Drip Proof


Standard/Approvals: UL Listed, CSA Certified

Products specifications
Attribute nameAttribute value
Amperage Rating10/4 A
Bearing TypeBall
Body Diameter6-1/2 Inch
Enclosure TypeOpen Drip Proof
Frame56
Frequency Rating60 Hz, 1 Phase
Insulation TypeClass B
ManufacturerRegal-Beloit
Mounting TypeCradle/Stud
Number of Speeds2
Overall Length12-3/16 Inch
Power Rating3/4 hp
Rotation TypeReversible
Service Factor1.25
Shaft Size5/8 Inch Dia x 1-7/8 Inch L
Speed1725/1140 Rpm
Temperature Rating40 deg C
TypeContinuous Duty
Voltage Rating115 V
