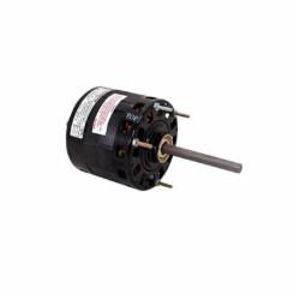

Century Fan and Blower Motor, Permanent Split Capacitor, Single Shaft, 1/5 - 1/10 - 1/6 hp, 230 V, 0.9 - 1.3 - 0.7 A, 60 Hz, 1 Phase, 42 Frame, 1075 Rpm, 3 Speed, Reversible, Service Factor: 1, Capacitor: 7.5 uF at 370 V, 5 Inch Body Dia, 9.38 Inch Overall Length, 1/2 Inch Dia x 5 Inch L Shaft, Sleeve Bearing, Thru-Bolt Mount, Mounting Position: Horizontal, 65 Percent Efficiency, 40 deg C, Class B Insulation, Open Air Over, Includes: Resilient Mounting Rings
- Automatic protection
- Flatted shaft
- All motors have 30 Inch leads
- 3 Thru bolts, 4.42 Inch dia. bolt circle
- Extended thru bolts, shaft end
Standard/Approvals: UR Recognized, CSA Certified
Application: Furnaces, Air Handlers, Fan Coils and Air Conditioning
