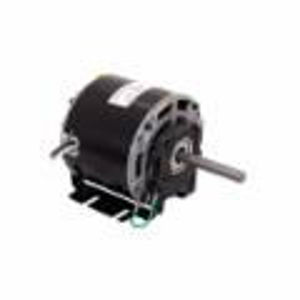

Century Fan and Blower Motor, Continuous Duty, Shaded Pole, Single Shaft, 1/6 hp, 115 V, 7.1 A, 60 Hz, 1 Phase, 42 Frame, 1550 Rpm, 1 Speed, CCWLE, Service Factor: 1, 5 Inch Body Dia, 6.80 Inch Overall Length, 1/2 Inch Dia x 2-1/4 Inch L Shaft, Sleeve Bearing, Thru-Bolt Mount, Mounting Position: Horizontal, 35 Percent Efficiency, 40 deg C, Class A Insulation, Open Air Over
- Automatic thermal protection
- Flatted shaft
Standard/Approvals: UR Recognized, CSA Certified
Application: Furnace Blowers, Attic Ventilators, Air Handlers and Fan Coils
