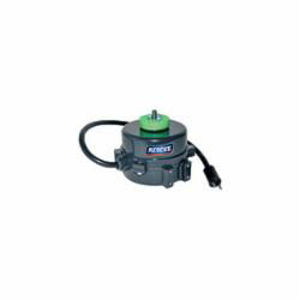

U.S. MOTORS EC5411E

U.S. MOTORS Continuous Duty Refrigeration Motor, 4 - 25 W, 115 - 230 V, 0.22 - 0.75 A at 115 V, 1550 - 1725 Rpm
SKU: 85119
Manufacturer part number: EC5411E

Please Sign In to display product price.

U.S. MOTORS Refrigeration Motor, Continuous Duty, 4 - 25 W, 115 - 230 V, 0.22 - 0.75 A at 115 V, 50/60 Hz, 36 Frame, 1550 - 1725 Rpm, CWOSE, 2.9 Inch Overall Length, 1/4 Inch Dia x 0.43 Inch H Shaft, Ball Bearing, 10-32 Stud Mount, 27 Inch Cord, 70 Percent Efficiency, -40 to 55 deg C, Totally Enclosed Air Over, Aluminum Frame
'

The new RESCUE ECM watt motor is the next addition of the RESCUE motor family to support the refrigeration contractor. it covers a range of wattage and speed specifications, thereby reducing your inventory. It is packaged with the adapters for single and four post fan hubs. The back of the motor features the holes to support various OEM evaporator mounting brackets and two sets of mounting feet for condenser mounting.

  • IP67 capable of being submerged in water up to 30 min
  • Universal mounting
  • Standard 3 hole style Hussmann 4 hole on back of motor
  • Dual voltage: no connection change required
  • Thermally protected
  • Robust ball bearing system

'

'

'

Standard/Approvals: UL, cUL Listed, ATEX Certified

Application: Evaporator and Condenser

Products specifications
Attribute nameAttribute value
Amperage Rating0.22 - 0.75 A at 115 V
Bearing TypeBall
Cord Type27 Inch
Efficiency70%
Enclosure TypeTotally Enclosed Air-Over
Frame36
Frequency Rating50/60 Hz
ManufacturerNidec Motor Corporation
MaterialAluminum Frame
Mounting Type10-32 Stud
Overall Length2.9 Inch
Power Rating4 - 25 W
Rotation TypeCWOSE
Shaft Size1/4 Inch Dia x 0.43 Inch H
Speed1550 - 1725 Rpm
TypeContinuous Duty
Voltage Rating115 /230 V
