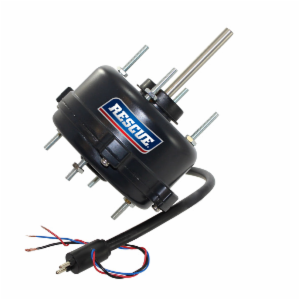

U.S. MOTORS EC5408E Refrigeration Motor, Continuous Duty, 30 - 50 W, 115 - 230 V, 0.60 - 0.72 A at 115 V, 50/60 Hz, 36 Frame, 1550 Rpm, CWOSE REV, 6.4 Inch Overall Length, 0.313 Inch Dia x 3.07 Inch L Shaft, Ball Bearing, 10-32 Stud Mount, 18 Inch Lyall/OEM Plug, 70 Percent Efficiency, -40 to 55 deg C, Totally Enclosed Air Over, Aluminum Frame
'
The new RESCUE ECM watt motor is the next addition of the RESCUE motor family to support the refrigeration contractor. it covers a range of wattage and speed specifications, thereby reducing your inventory. It is packaged with the adapters for single and four post fan hubs. The back of the motor features the holes to support various OEM evaporator mounting brackets and two sets of mounting feet for condenser mounting.
- IP67 capable of being submerged in water up to 30 min
- Universal mounting
- Standard 3 hole style Hussmann 4 hole on back of motor
- Dual voltage: no connection change required
- Thermally protected
- Robust ball bearing system
Standard/Approvals: UL, cUL Listed, ATEX Certified
Application: Evaporator and Condenser
Warranty: 2 year from installation
