U.S. MOTORS 2111

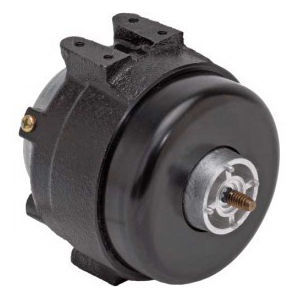

U.S. MOTORS® 2111 Shaded Pole Fan Motor, 16 W, 115 V, 1 A, 1550 Rpm, 50/60 Hz, 1 Phase, 1-Speed, CCWLE , 40 deg C
SKU: 1930
Manufacturer part number: 2111

Please Sign In to display product price.

U.S. MOTORS® Fan Motor, Shaded Pole, 16 W, 115 V, 1 A, 50/60 Hz, 1 Phase, 1550 Rpm, 1 Speed, CCWLE , 3.6 Inch Body Diameter, 4-1/2 Inch Overall Length, 1/4-20 Dia x 1/2 Inch L Shaft, Sleeve/Ball Bearing, Extended Stud/Resilient Rings Mount, Mounting Position: All Angle, 2 ft Cord, 40 deg C, Class A Or B Insulation, Totally Enclosed Air Over, Cast Iron, Includes: (1) Hub Washer, (4) Mounting Screws, (1) Speed Nut and Vibration Dampener
'

  • Permanently lubricated bearings
  • Impedance protected
  • Cord with molded strain relief

'

'

'

Standard/Approvals: CSA Certified, UL Listed

Application: Condensing Units, Conditioned Air Systems, Evaporative Coolers and Furnaces


Products specifications
Attribute nameAttribute value
Amperage Rating1 A
Bearing TypeSleeve/Ball
Body Diameter3.6 Inch
Cord Type2 ft
Enclosure TypeTotally Enclosed Air-Over
Frequency Rating50/60 Hz, 1 Phase
Insulation TypeClass A Or B
ManufacturerNidec Motor Corporation
MaterialCast Iron
Mounting PositionAll Angle
Mounting TypeExtended Stud/Resilient Rings
Number of Speeds1
Overall Length4-1/2 Inch
Power Rating16 W
Rotation TypeCCWLE
Shaft Size1/4-20 Dia x 1/2 Inch L
Speed1550 Rpm
Temperature Rating40 deg C
TypeShaded Pole
Voltage Rating115 V
