U.S. MOTORS 1875

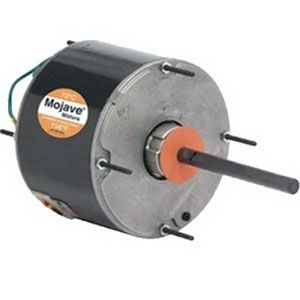

U.S. MOTORS® 1875 Permanent Split Capacitor Condenser Fan Motor, 1/3 hp, 208/230 V, 2.4 A, 825 Rpm, Frame 48Y
SKU: 39712
Manufacturer part number: 1875

Please Sign In to display product price.
U.S. MOTORS® Condenser Fan Motor, Permanent Split Capacitor, 1/3 hp, 208/230 V, 2.4 A, 60 Hz, 1 Phase, 48Y Frame, 825 Rpm, 1 Speed, Reversible, Service Factor: 1, Capacitor: 7.5 uF, 5.6 Inch Body Diameter, 11.6 Inch Overall Length, 1/2 Inch Dia x 6 Inch L Shaft, Ball Bearing, Stud Mount, Mounting Position: All Angle, 67.7% Efficiency, 60 deg C, Class B Insulation, Totally Enclosed Air Over
  • Automatic reset thermal overload protector
  • Designed for use with 370 V capacitors
  • Extended studs
  • Hubless lead end
  • Drain holes both ends
  • Continuous duty
  • Sleeve bearings have all angle thrust system

Application: Commercial and Residential


Products specifications
Attribute nameAttribute value
Amperage Rating2.4 A
Bearing TypeBall
Body Diameter5.6 Inch
Capacitor7.5 uF
Efficiency67.7%
Enclosure TypeTotally Enclosed Air-Over
Frame48Y
Frequency Rating60 Hz, 1 Phase
Insulation TypeClass B
ManufacturerNidec Motor Corporation
Mounting PositionAll Angle
Mounting TypeStud
Number of Speeds1
Overall Length11.6 Inch
Power Rating1/3 hp
Rotation TypeReversible
Service Factor1
Shaft Size1/2 Inch Dia x 6 Inch L
Speed825 Rpm
Temperature Rating60 deg C
TypePermanent Split Capacitor
Voltage Rating208/230 V
