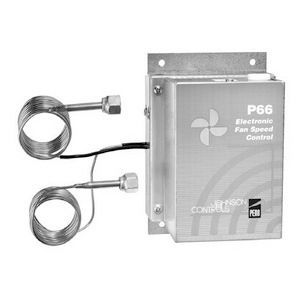

Johnson Controls P66 Motor Speed Controller, Electronic, Pressure Actuated, 1/4 Inch Quick Connect, -40 to 54 deg C, NEMA 1, 3R, Vertical Mount, Steel, Galvanized
- Exclusive Johnson controls/penn® pressure transducer responds quickly to condenser pressure changes and condenser air delivery requirements
- Soft start capability provides a smooth fan start-up which reduces motor starting noise and abrupt changes in motor speed
- 208-240/277/480 VAC 60 Hz motor control suitable for a wide range of condenser fan motor applications
- Available with single or dual inputs for single- or multi-circuited condensers dual models control to high signal (high signal select)
- Two effective throttling ranges (ETRs) provide either a 30 or 60 psi (207 or 414 kPa) ETR
- NEMA 1 or NEMA 3R (Rainproof) enclosures allows indoor and panel mounting or outdoor mounting
- Built-in voltage surge protection, radio frequency interference (RFI) suppression and ground terminal screw
- 24VAC control voltage
- 190 - 250 operating range psig
- 1 sensor inputs
Standard/Approvals: SDFY2, SDFY8, UL SA516 Listed
Application: HVAC
