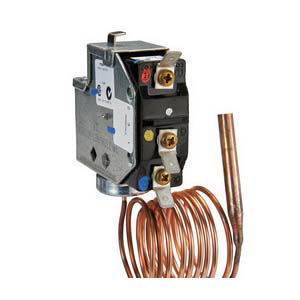

Johnson Controls P20EB-2C

Johnson Controls P20 1-Function High Pressure Cutout Control, 100 - 425 psi, Opens On High Pressure, SPDT
SKU: 21111
Manufacturer part number: P20EB-2C
Manufacturer:

Johnson Controls


Please Sign In to display product price.
Johnson Controls P20 Pressure Cutout Control, 1-Function, High Pressure, 100 - 425 psi, 75 psi Differential, Opens On High Pressure, SPDT Switch, 120/277 VAC, 1/4 Inch Sweat, 36 Inch Capillary Length, Quick Connect, NEMA 1, 140 deg F, Includes: Dust Tight Contact Unit with Quick Connect Connectors and Universal Mounting Bracket
  • Accurate repeatability
  • Compact size
  • Trip-free manual reset contacts cannot be blocked closed. Reset tab must be released before restart
  • Accurate repeat performance and long life. Test strength far above the most severe operating and standby conditions
  • Compact -- less than the size of a cigarette pack
  • Transmission of diaphragm movement is by a stainless steel power lever operating on a stainless steel pivot -- load aligned to reduce friction
  • AC full load A: 16 FLA at 120 VAC 9.2 FLA at 208 VAC 8 FLA at 240, 7 FLA at 277 VAC
  • AC locked rotor A: 96 LRA at 120 VAC 55.2 LRA at 208 VAC 48 LRA at 240, 42 LRA at 277 VAC
  • SPDT: 16 A at 120 - 240 VAC
  • Pilot duty: 125 VA at 24 VAC 720 VA at 120 - 277 VDC
  • Factory setting: 400 psi open, 324 psi close
  • Maximum bellows pressure: 450 psi

Application: Package Residential or Commercial Air Conditioning Units


Products specifications
Attribute nameAttribute value
Capillary Length36 Inch
Connection Type1/4 Inch Sweat
Contact FormSPDT, Opens On High Pressure
Contact Rating120/277 VAC
Differential75 psi
Electrical ConnectionQuick Connect
Enclosure TypeNEMA 1
ManufacturerJohnson Controls
Pressure Range100 - 425 psi
SeriesP20
Temperature Rating140 deg F
Type1-Function, High Pressure
