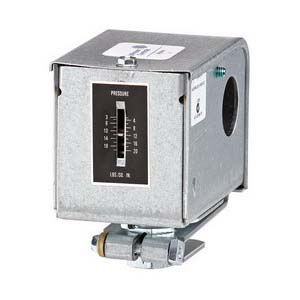

Johnson Controls P10 Pressure Control, Electromechanical, Low Pressure, 3 - 20 psi, 2 psi Differential, SPDT, Snap-Acting Switch, 120/277 VAC, 1 Phase, 1/8 Inch Barbed, Universal Mount, 140 deg F, 3-7/8 Inch L x 2-3/32 Inch W x 3-3/16 Inch H, Includes: Universal Mounting Bracket
- Visible calibrated adjustable range scale
- Easily accessible wiring terminals
- Number of stages: 1
- Snap-acting switch in a dust protected enclosure
- AC full load A: 16 FLA at 120 VAC 9.2 FLA at 208 VAC 8 FLA at 240 VAC 7 FLA at 277 VAC
- AC locked rotor A: 96 LRA at 120 VAC 55.2 LRA at 208 VAC 48 LRA at 240 VAC 42 LRA at 277 VAC
- Non-inductive A: 16 A at 120 VAC 9.2 A at 208 VAC 8 A at 240 VAC 7.2 A at 277 VAC
- Pilot duty: 125 VA at 24 - 277 VAC
- Maximum allowable pressure: 150 psi
Standard/Approvals: CSA Certified, UL Listed
Application: Pneumatic Systems Control of Pumps or Small Air Compressors
