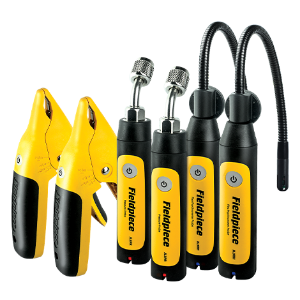

Fieldpiece JL3KH6 Job Link System Charge and Air Kit, Consists of 2 pressure probes, 2 pipe clamps, and 2 psychrometers in a quick access padded case.
JL3KH6 – Job Link® System Charge and Air Kit
Quick service checks just got quicker.
Wireless range of 1,000’.
Directly connects to mobile device with Job Link System App
Fast accurate temps with new Rapid Rail technology
Pressures auto calibrate at any elevation
Configurable psychrometers with flexible probe and sliding magnet
A2L Compatible
Take a full system snapshot quickly and easily with the JL3KH6 Charge and Air Test Kit. This kit consists of 2 pressure probes, 2 pipe clamps, and 2 psychrometers in a quick access padded case. All measurements can be sent up to 1000’ away directly to your mobile device with the Job Link® System mobile app. Each tool is designed for agility and speed. The pressure probes fit into tight spaces. The pipe clamps use the new Rapid Rail™ sensor design delivering accuracy, speed, and agility, even on the most awkward pipe configurations. The psychrometers’ flexible narrow probes and configurable magnet make it easy to measure supply plenums, ducts, and elevated registers. Do more with Job Link probes!
SPECIFICATIONS
Wireless Range: 1000 feet or more
Wireless Frequency: 2.4 GHz
Battery: 2 x AAA (included)
Battery Life: 150 hrs typical alkaline
Auto Power Off (APO): 2 hrs (can be disabled)
Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or AndroidTM 5.0
Job Link Pressure Probe – JL3PR
Connector Type: 45° Standard 1/4” NPT female flare
Best Accuracy: ±1 psig (±7 kPa)
Measurement Range: 0 to 580 psig (0 to 4000 kPa)
Maximum Overload: 800 psig (5500 kPa)
Water Resistant: Designed to IP55
Job Link Premium Pipe Clamp Probe – JL3PC
Pipe Compatibility: Electrically conductive 1/4” to 1 3/8” (6.4mm to 34.9mm) dia.
Accuracy: ±1°F (±0.6°C)
Measurement Range: -50°F to 257°F (-46°C to 125°C)
Stabilization Time: 3 seconds typical
Measurement Feedback: Beeper and LED
Water Resistant: Designed to IP55
Patent: Pending
Job Link Flex Psychrometer Probe – JL3RH
Flexible Probe: 0.36” (9mm) diameter, 9.25” (235mm) length
Best Accuracy: ±1°F (±0.6°C) ±2.5 %RH
Measurement Range: -40°F to 250°F (-40°C to 121°C) 0 %RH to 100 %RH
Includes:
2 Job Link Pipe Temp Probes
2 Job Link Pressure Probes
2 Job Link Psychrometer Probes
Padded Carrying Case
2 x AAA Batteries Per Probe (12 Total)
SPECIFICATIONS
Wireless Range: 1000 feet or more (305 meters)
Wireless Frequency: 2.4 GHz
Battery: 2x AAA (included)
Battery Life: 150 hours typical alkaline
Auto Power Off (APO): 2 hours (can be disabled)
Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or Android™ 5.0
Job Link Pressure Probe – JL3PR
Connector Type: 45° Standard 1/4” NPT female flare
Best Accuracy: ±1 psig (±7 kPa)
Measurement Range: 0 to 580 psig (0 to 4000 kPa)
Maximum Overload: 800 psig (5500 kPa)
Water Resistant: Designed to IP55
Job Link Premium Pipe Clamp Probe – JL3PC
Pipe Compatibility: Electrically conductive 1/4” to 1 3/8” (6.4mm to 34.9mm) dia.
Accuracy: ±1°F (±0.6°C)
Measurement Range: -50°F to 257°F (-46°C to 125°C)
Stabilization Time: Three seconds typical
Measurement Feedback: Beeper and LED
Water Resistant: Designed to IP55
Patent: 10,365,165
Job Link Flex Psychrometer Probe – JL3RH
Flexible Probe: 0.36” (9mm) diameter, 9.25” (235mm) length
Best Accuracy: ±1°F (±0.6°C) ±2.5 %RH
Measurement Range: -40°F to 250°F (-40°C to 121°C) 0 %RH to 100 %RH
