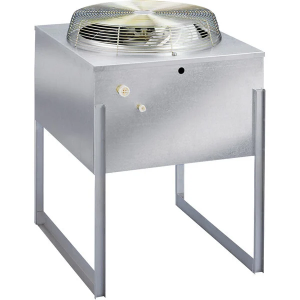

Manitowoc JCT1200-261 Vertical Discharge Remote Ice Machine Condenser - 208/230V
JCT1200-261
Vertical Discharge Remote Condenser-410A
for Indigo® NXT™ Series Ice Cube Machines with R410A refrigerant
Remote, air-cooled condenser system improves efficiency and ice production, conserving energy.
Manitowoc remote condenser systems effectively dissipate heat at a convenient location, indoors or outdoors, away from the ice machine. This maximizes icemaking capability and minimizes air conditioning loads by lowering the ambient air temperature at the ice machine.
Condenser operation range
From -20°F (-29°C) to 120°F (49°C). Can be installed with up to 20” (50.8 cm) of bottom clearance.
Remote system
Consists of a remote condenser and interconnecting refrigerant lines. All components are pre-charged with refrigerant and have quick-connect fittings for convenient installation. Order ice cube machine, ice storage bin, vertical discharge remote condenser and line set separately.
Vertical discharge remote condenser
Available for Indigo NXT Series iT1200N ice machines. Refer to ice machine specification sheet for equipment dimensions, production capacities, electrical requirements, and ice storage bin compatibility.
Warranty
3-year parts and labor. See warranty statement for complete details.
Installation Information and Dimensions
Maximum Location Distance - combined vertical and horizontal distances from ice machine to condenser must comply with guidelines.
Maximum Line Length: 100' (30 m)*
Maximum Vertical Rise: 35' (10.5 m) above ice machine.
Maximum Vertical Drop: 15' (4.5 m) below ice machine.
Standard Features
Vertical discharge remote condenser is available for Indigo NXT Series iT1200N ice machines. Refer to ice machine specification sheet for equipment dimensions, production capacities, electrical requirements, and ice storage bin compatibility.
Condenser operation range from -20°F (-29°C) to 120°F (49°C). Can be installed with up to 20” (50.8 cm) of bottom clearance.
Remote system consists of a remote condenser and interconnecting refrigerant lines. All components are pre-charged with refrigerant and have quick-connect fittings for convenient installation. Order ice cube machine, ice storage bin, vertical discharge remote condenser and line set separately.
Warranty
• 3-year parts and labor. See warranty statement for complete details.
Dimensions: 24.5" W x 28" D x 34" H or 38" H Option
