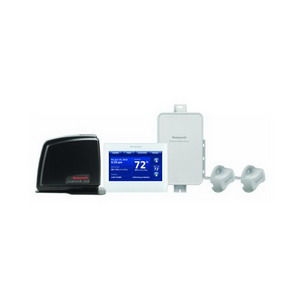

Honeywell Prestige® IAQ Programmable Thermostat, 2-Wire, Touchscreen, 40 - 90 deg F Heat, 50 - 99 deg F Cool, +/-1 deg F Differential, 4 Heat Pump, 3 Conventional Stages Heat, 2 Heat Pump, 2 Conventional Stages Cool, Programs Per Week: 7, Terminal Designations: R, RC, RH, C, W-O/B, W2-AUX1, W3-Aux2, Y, Y2, G, A-L/A, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4, A, B, C, D, System Switching: Heat-Off-Cool-Auto-Emergency-Heat, Fan Switching: Auto-On-Circulate-Follow Schedule, 8.06 sq-Inch Display, 18/30 VAC, 50/60 Hz, Hardwired, Horizontal/Vertical Mount, Premier White, 7/8 Inch L x 4-1/2 Inch W x 3-1/2 Inch H, Includes: THM5421R1021 Equipment Interface Module, C7089R1013 Wireless Outdoor Sensor and (2) Duct Sensors
- Control heating, cooling and IAQ equipment with only 2 wires at the thermostat, heating, cooling and IAQ equipment wires to the equipment interface module
- Smart schedule - programs in seconds for any lifestyle
- Patented interview based programming and installer setup
- RedLINK™ wireless communication
- Increase profit per job by including RedLINK™ accessories that provide comfort and convenience. RedLINK™ accessories include the RedLINK™ internet gateway, portable comfort control (PCC) , wireless outdoor sensor, wireless indoor sensor, wireless entry/exit remote, wireless vent and filter boost remote, TrueSTEAM™ humidifier with wireless adapter and TrueZONE® zoning panel with wireless adapter
- All Prestige® IAQ kits come standard with a return and discharge air temperature sensor to measure Delta T
- Extend wireless range of the equipment interface module by connecting a THM4000R1000 wireless adapter to the ABCD terminals
- All Prestige® IAQ kits come standard with a return and discharge air temperature sensor to measure Delta T
- Alerts and user interactions log - keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by user error. Saves time in troubleshooting and points the technician in the right direction
- Performance logs - keeps a history of heating and cooling performance. The performance log includes minimum and maximum Delta T, minimum and maximum discharge temperature, minimum and maximum return temperature, minimum and maximum indoor temperature/humidity, minimum and maximum outdoor temperature/humidity and run time. Quickly determine if the system is performing as expected and reduces service time on the job
- Customizable service reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts
- USB port for transferring installer setup customizable reminders, custom events and holidays to multiple thermostats
- USB port for adding the dealer's full color business logo on the screen
- 3 assignable outputs to control humidification, dehumidification, ventilation and a stage of heating or cooling
- 4 assignable inputs on the equipment interface module can be used with wired outdoor, indoor or discharge sensors, occupancy sensor for remote setback and dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leak
- Extend wireless range of the equipment interface module by connecting a THM4000R1000 wireless adapter to the ABCD terminals
- Precise temperature control (+/- 1 deg F) for reliable and consistent temperature
- Multiple staging options to provide comfort or energy savings
Application: Conventional Systems and Heat Pumps, Residential and Commercial Use
