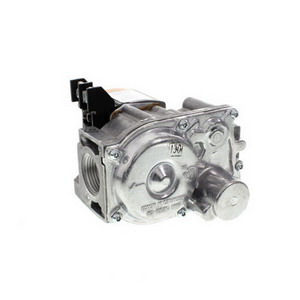

Honeywell VR8300 Gas Valve, 1-Stage, Straight-Through, Standard Opening, 1/2 x 3/4 Inch, NPT, 0.5 psi, Standing Pilot Ignition, 30000 - 290000 BtuH, Natural Gas, 24 VAC, 60 Hz Coil, 1/4 Inch Quick Connect Male, 0 - 175 deg F, 5-3/8 Inch H x 4-1/16 Inch W x 2-11/16 Inch D, Includes: (1) 3/4 x 1/2 Inch Reducer Bushing, Natural to LP Conversion Kit, Safety Shut-Off Manual Valve, (2) Automatic Operators, Pressure Regulator and Pilot Adjustment
- Compact size
- Provide two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends
- Mounting: 0 - 90 deg in any direction from the upright position of the gas control knob, including vertically
- Diaphragm operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted
- Meet codes requiring dual safety shut-off
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
- Compatible with eco connector
- Lite-rite (off-pilot-on) lighting sequence
- Pilot gas outlet: compression fitting for 1/4 Inch OD tubing
- Pressure tapping: 1/8 Inch NPT with plug
- Pressure regulator setpoint: 3.5 Inch WC
Standard/Approvals: CSA 112395, UL MCCZ2.MH5323
