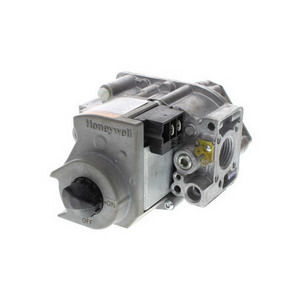

Honeywell VR8205 Gas Valve, 1-Stage, Step Open, 1/2 Inch, NPT, 1/2 psi, Direct Ignition, 20000 - 200000 BtuH, Natural Gas, 24 VAC Coil, 1/4 Inch Quick Connect Male Terminals, Upright/Vertical Mount, 0 - 175 deg F, 4-15/16 Inch L x 4-1/8 Inch W x 2-3/16 Inch D, Includes: Manual Valve, (2) Automatic Operators and Pressure Regulator
- Provides two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted
- Meets codes requiring dual safety shut-off
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Mounting from 0 to 90 deg in any direction from the upright position of the gas control knob, including vertically
- Straight-through body pattern
Standard/Approvals: CSA L2025006
Application: For Hot Surface/Direct Spark Systems in 24 VAC Gas-Fired, Standing Pilot Appliances With Capacities from 20 to 200 cfh
