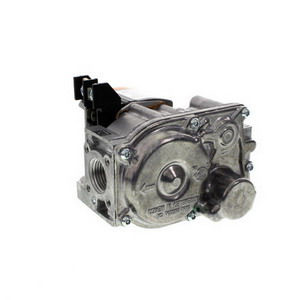

Honeywell VR8200H1251/U

Honeywell VR8200H1251 1-Stage Straight-Through Standard Opening Gas Valve, 1/2 Inch, NPT, 0.5 psi, 24 VAC, 60 Hz Coil
SKU: 11926
Manufacturer part number: VR8200H1251/U
Manufacturer:

Honeywell


Please Sign In to display product price.
Honeywell VR8200 Gas Valve, 1-Stage, Straight-Through, Standard Opening, 1/2 Inch, NPT, 0.5 psi, Standing Pilot Ignition, 20000 - 200000 BtuH, Natural Gas, 24 VAC, 60 Hz Coil, 1/4 Inch Quick Connect Male, 0 - 175 deg F, 5-3/16 Inch H x 4-1/16 Inch W x 2-11/16 Inch D, Includes: (1) 3/4 Inch Straight Flange, (1) 1/2 x 3/8 Inch Reducer Bushings, Natural to LP Conversion Kit,, Manual Valve, (2) Automatic Operators, Servo Pressure Regulator and Pilot Adjustment
  • Compact size
  • Provide two automatic valves
  • Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends
  • Mounting: 0 - 90 deg in any direction from the upright position of the gas control knob, including vertically
  • Diaphragm operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted
  • Meet codes requiring dual safety shut-off
  • All adjustments, wiring connections and pilot outlet are accessible from top of control
  • Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
  • Compatible with eco connector
  • Pilot gas outlet: compression fitting for 1/4 Inch OD tubing
  • Pressure tapping: 1/8 Inch NPT with plug
  • Pressure regulator setpoint: 3.5 Inch WC

Standard/Approvals: CSA 112395, UL MCCZ2.MH5323


Products specifications
Attribute nameAttribute value
Coil Voltage24 VAC, 60 Hz
Dimensions5-3/16 Inch H x 4-1/16 Inch W x 2-11/16 Inch D
Electrical Connection1/4 Inch Quick Connect Male
End StyleNPT
Gas TypeNatural Gas
Ignition TypeStanding Pilot
ManufacturerHoneywell
Nominal Capacity20000 - 200000 BtuH
Nominal Size1/2 Inch
Pressure Rating0.5 psi
SeriesVR8200
Temperature Range0 - 175 deg F
Type1-Stage, Straight-Through, Standard Opening
