TK Series Combo Boiler Trim kits from Resideo are a quick way to purchase boiler trim when doing a boiler change out. All kits with SuperVent include expansion tank and a high performance air eliminator.

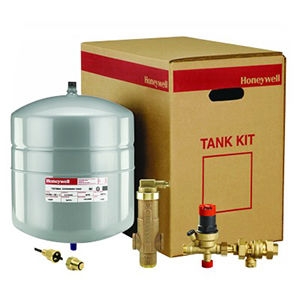

ResideoTK Combo Trim Kit, 15-1/2 Inch Height, Includes: TK300-30, SCV-050, FM911 and PV125S
- Deep-drawn steel tank
- Controls system pressure
- Air tight cushion-factory pre-charged to 12 psi and 100% tested
- 4.4 gal Capacity
- 1-1/4 Inch Sweat Supervent™, 1/2 Inch MNPT Tank Connection
- 100 psi Working
- 240 deg F
- 11 Inch Dia
Product Specifications
Hazmat Information UN 1956 COMPRESSED GAS, N.O.S.,(air with up to 15% helium), 2.2
Maximum Safe Operating Pressure (psi)100 psi
Maximum Safe Operating Pressure (kPa)689 kPA
IncludesTK300-30, PV125S, SCV-050, FM911
Weight (lb)16.8 lb
Weight (kg)7.6 kg
Item Type Product
Operating Temperature Range (F)240 F Maximum
Operating Temperature Range (C)115 C Maximum
Connection Size (in.)SuperVent: 1 1/4 in.; Tank: 1/2 in.
Connection Type Tank: Male NPT; SuperVent: Sweat
Diameter (in.)11 in.
Diameter (mm)279 mm
Volume (gal)4.4 gal
Volume (L)16.7 L
Maximum Acceptance Volume (gal)2.5 gal
Maximum Acceptance Volume (L)9.5 L
Height (in.)15 1/2 in.
Height (mm)394 mm
