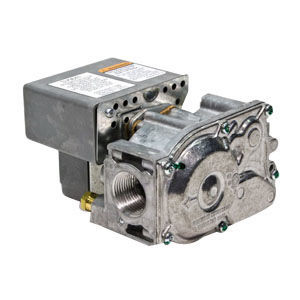

Honeywell SV9641M4510/U

Honeywell SmartValveĀ® Standard Opening Straight-Through Gas Valve, 3/4 Inch, NPT, 0.5 psi, 0.6 - 5.7 cmh
SKU: 37163
Manufacturer part number: SV9641M4510/U
Manufacturer:

Honeywell


Please Sign In to display product price.
Honeywell SmartValveĀ® Gas Valve, Standard Opening, Straight-Through, 3/4 Inch, NPT, 0.5 psi, Intermittent Hot Surface Pilot Ignition, 0.6 - 5.7 cmh, Natural Gas, 24 VAC, 50/60 Hz Coil, -40 to 175 deg F, 4.1 Inch L x 3.2 Inch W x 4.9 Inch H, Includes: (2) 3/4 Inch x 1/2 Inch Reducer Bushing and LP Conversion Kit
  • It can directly interface with the appropriate power supplies and a system thermostat for additional appliance applications
  • When controlled directly by a thermostat, the control does not provide a postpurge function, as power to the control is removed when the thermostat call for heat ends
  • The control communicates directly with the ST9160 electronic fan timer (EFT) in typical forced warm air furnace applications
  • Mounting: 0 to 90 deg in any direction from the upright position of the gas control knob, including vertically
  • Ignition trials to Lockout: continuous retry
  • Flame Sense: his
  • Flame failure response time: 1.6 sec at 3 uA
  • PrePurge: 15 sec, PostPurge: 30 sec
  • Ignition trial time: 90 sec
  • Typical ignition hardware: Q3450 and Q3480
  • Pressure regulator setting: 3.5 Inch WC
  • Pressure tapping: 1/8 Inch NPT

Standard/Approvals: CSA 112395

Application: Fan-Assisted Combustion, Gas-Fired Appliances Including Furnaces, Rooftop Furnaces, Boilers, Unit Heaters, Infrared Heaters, Water Heaters and Commercial Cooking Appliances


Products specifications
Attribute nameAttribute value
Coil Voltage24 VAC, 50/60 Hz
Dimensions4.1 Inch L x 3.2 Inch W x 4.9 Inch H
End StyleNPT
Gas TypeNatural Gas
Ignition TypeIntermittent Hot Surface Pilot
ManufacturerHoneywell
Nominal Capacity0.6 - 5.7 cmh
Nominal Size3/4 Inch
Pressure Rating0.5 psi
SeriesSmartValve®
TypeStandard Opening, Straight-Through
