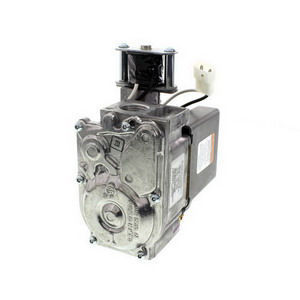

Honeywell SmartValve® Gas Valve, Standard Opening, Straight-Through, 2-Stage, 1/2 Inch, NPT, 0.5 psi, Intermittent Hot Surface Pilot Ignition, 0.6 - 5.7 cmh, Natural Gas, 24 VAC, 50/60 Hz Coil, -40 to 175 deg F, 4.1 Inch L x 3.2 Inch W x 4.9 Inch H, Includes: LP Conversion Kit
- It can directly interface with the appropriate power supplies and a system thermostat for additional appliance applications
- When controlled directly by a thermostat, the control does not provide a postpurge function, as power to the control is removed when the thermostat call for heat ends
- The control communicates directly with the ST9160 electronic fan timer (EFT) in typical forced warm air furnace applications
- Mounting: 0 to 90 deg in any direction from the upright position of the gas control knob, including vertically
- Ignition trials to Lockout: continuous retry
- Flame Sense: his
- Flame failure response time: 1.6 sec at 3 uA
- PrePurge: 15 sec, PostPurge: 30 sec
- Ignition trial time: 90 sec
- Typical ignition hardware: Q3450 and Q3480
- Pressure regulator setting: 3.2 Inch WC
- Pressure tapping: 1/8 Inch NPT
Standard/Approvals: CSA 112395
Application: Fan-Assisted Combustion, Gas-Fired Appliances Including Furnaces, Rooftop Furnaces, Boilers, Unit Heaters, Infrared Heaters, Water Heaters and Commercial Cooking Appliances
