Sorry - this product is no longer available

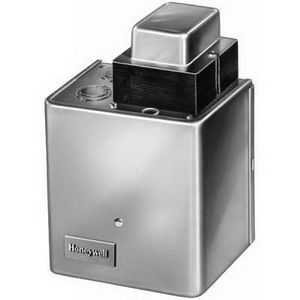

Honeywell R856B1002

Honeywell R856B Heavy Duty Switching Relay, 24 VAC 0.22 A, SPST
SKU: 80324
Manufacturer part number: R856B1002
Manufacturer:

Honeywell


Please Sign In to display product price.

Honeywell R856B Switching Relay, Heavy Duty, 24 VAC Coil, 0.22 A Coil, SPST, 7-1/8 Inch L x 4-1/2 Inch W x 3-5/16 Inch D, Includes: External Transformer and Enclosure

  • Provides 24 V control of line voltage motors, fans blowers, or pumps up to 1 hp
  • Integral 45 VA transformer to supply low voltage power for the system
  • Low voltage terminal strip for easy thermostat and panel connections
  • 60 Hz
  • Contact ratings (AFL) : 14 A NO, 10 A NC at 120 VAC
  • Contact ratings (ALR) : 84 A NC, 80 A NC at 120 VAC





Standard/Approvals: CSA Certified, UL Listed

Products specifications
Attribute nameAttribute value
Coil Current0.22 A
Coil Voltage24 VAC
Contact ConfigurationSPST
Dimensions7-1/8 Inch L x 4-1/2 Inch W x 3-5/16 Inch D
ManufacturerHoneywell
SeriesR856B
TypeHeavy Duty
