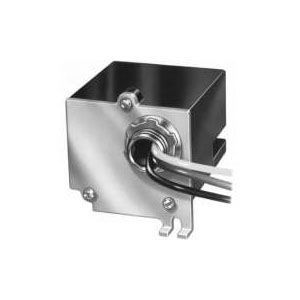

Honeywell R8225A1017

Honeywell R8225A Fan Relay, 120/240 VAC, 3 A at 277 VAC, 24 VAC Coil, 1 NC/1 NO, SPDT, Leadwire Terminal
SKU: 459
Manufacturer part number: R8225A1017
Manufacturer:

Honeywell


Please Sign In to display product price.
Honeywell R8225A Fan Relay, 120/240 VAC, 3 A at 277 VAC, 24 VAC Coil, SPDT 1 NC/1 NO, Leadwire Terminal, 2-11/16 Inch L x 2-1/2 Inch W x 3-7/16 Inch D
  • Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation
  • Untaped coil assures cooler operation
  • Laminated magnet construction for higher efficiency
  • Base designed for easy replacement of competitive relays
  • Double quick-connect coil terminals
  • Plug compatible with Steveco 90-340 and MarsĀ® 90340
  • Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation

Standard/Approvals: CSA LR95329-1 Certified, UL E14480 Listed

Application: Air Conditioning, Heating and Refrigeration Systems


Products specifications
Attribute nameAttribute value
Amperage Rating3 A at 277 VAC
Coil Voltage24 VAC
Contact ConfigurationSPDT
Contact Form1 NC/1 NO
Dimensions2-11/16 Inch L x 2-1/2 Inch W x 3-7/16 Inch D
ManufacturerHoneywell
SeriesR8225A
Terminal TypeLeadwire
Voltage Rating120/240 VAC
